BOBST PACIFIC 3.0 AUTOMATIC SPECIALTY FOLDER GLUER WITH POLY-JOINER
Have one to sell?
ConditionUsed
1 available

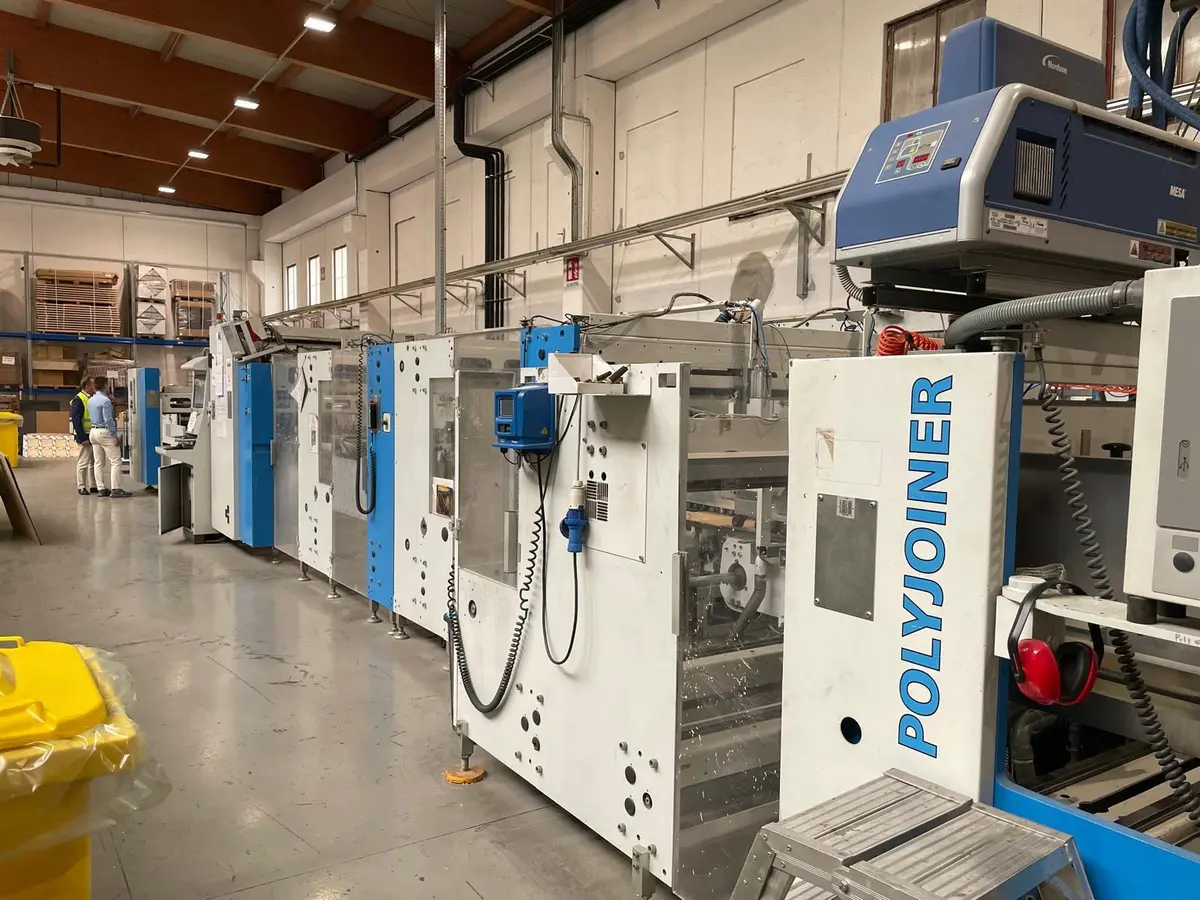

118" BOBST PACIFIC 3.0 Automatic specialty folder gluer, equipped with; vacuum stream feeder Poly-Joiner multi-piece feeder, servo drive lock-bottom, 4 & 6 corner gluing capabilities, squaring section, and compression section
Folder Gluer BOBST PACIFIC 3.0 - MOT / A4 with
POLYJOINER (device for multiple insertions)
Year 2005
Max size 3000 x 1600 mm
Min size 290 x 150 mm
Speed from 20 - 250 m/Min.
Works with solid board from 800 up to 2000 gr/m2, corrugated
A, B, C,E,F,N
Thickness of folded box max 35 mm
Equipped for straightline, lockbottom and 4 + 6 corner gluing HHS cold extrusion gluing system with 8 guns (3 of them with glue detection)
Nordson-melt hot gluing system with 2 guns.
Accufeed with blank alignment, squaring unit in the folding section and at the entry of the press station, additional press rollers
Kicker, counter, UV-marker.
POLYJOINER with HHS cold extrusion gluing system and Nordson melt hot gluing system
118" BOBST PACIFIC 3.0 Automatic specialty folder gluer, equipped with; vacuum stream feeder Poly-Joiner multi-piece feeder, servo drive lock-bottom, 4 & 6 corner gluing capabilities, squaring section, and compression section
Folder Gluer BOBST PACIFIC 3.0 - MOT / A4 with
POLYJOINER (device for multiple insertions)
Year 2005
Max size 3000 x 1600 mm
Min size 290 x 150 mm
Speed from 20 - 250 m/Min.
Works with solid board from 800 up to 2000 gr/m2, corrugated
A, B, C,E,F,N
Thickness of folded box max 35 mm
Equipped for straightline, lockbottom and 4 + 6 corner gluing HHS cold extrusion gluing system with 8 guns (3 of them with glue detection)
Nordson-melt hot gluing system with 2 guns.
Accufeed with blank alignment, squaring unit in the folding section and at the entry of the press station, additional press rollers
Kicker, counter, UV-marker.
POLYJOINER with HHS cold extrusion gluing system and Nordson melt hot gluing system
