66" X 142" SHINKO SA1636-FFG 'SUPER-ALPHA' SERVO DRIVEN FLEXO FOLDER GLUER

Description

66" X 142" SHINKO SA1636 2/COLOR SERVO-DRIVEN FLEXO FOLDER GLUER EQUIPPED WITH:

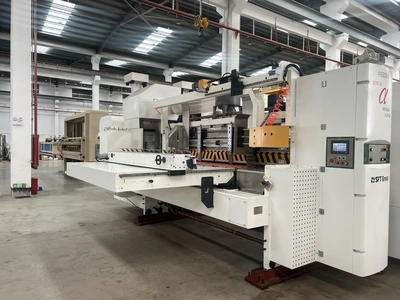

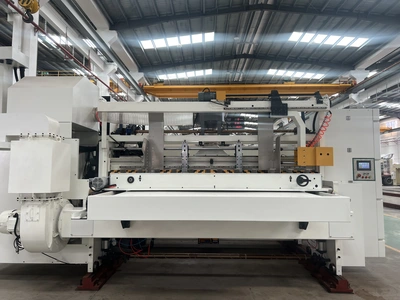

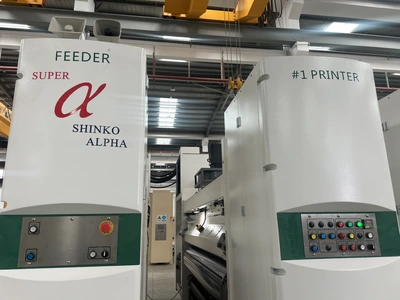

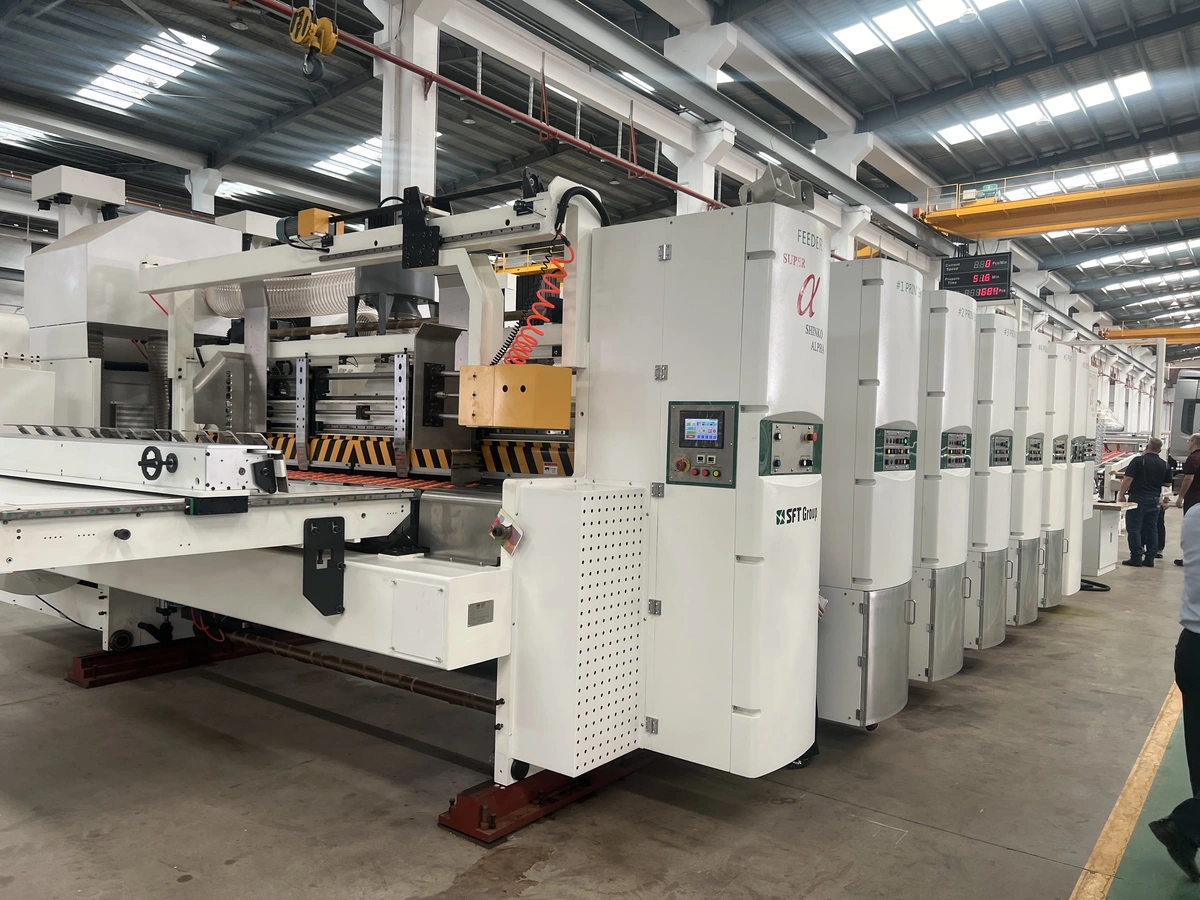

FEED SECTION
SERVO DRIVEN LEAD EDGE FEEDER
AUTO RETURN TO “0” POSITION
BACK GUIDE AUTO SET
LEAD EDGE AUTO SET
PAPER DUST REMOVER (SHINKO’S ORIGINAL DESIGN)
SHEET JAM DETECTOR
BATCH COUNTER
SIDE TAMPER
LEAD EDGE TABLE GRATE-LESS MECHANISM
FEEDING PERFORMANCE AND RELIABILITY IS INCREASED DRAMATICALLY BY ADOPTING A LEAD EDGE FEEDER THAT IS CAPABLE OF HANDLING WARPED BOARD BY INDEPENDENTLY DRIVING EACH AXIS BY INDEPENT SERVO MOTOR.
THE FEEDER IS DESIGNED TO DECREASE NOISE AND VIBRATION WHEN RUNNING AT HIGH SPEEDS, CREATING A SAFER, QUIETER ENVIRONMENT FOR OPERATORS AND PLANT PERSONNEL. AN ADDED REGISTRATION COMPENSATOR GREATLY INCREASES THE ACCURACY OF THE FEEDER.

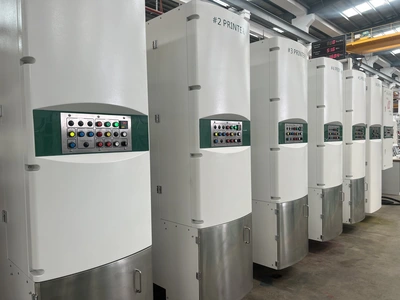

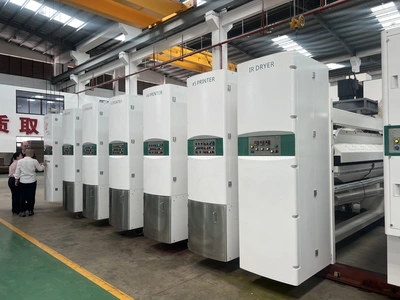

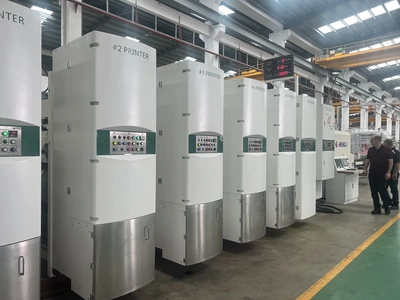

PRINTING UNITS (2 BOTTOM PRINT UNITS)

THE USE OF A CHAMBERED DOCTOR BLADE SYSTEM COVERS INK UNIFORMLY REGARDLESS OF MACHINE SPEED OR SHEET SIZE, ELIMINATING UNEVEN OR FADED COLORS. PRINT CYLINDER MOTORIZED LATERAL ADJUSTMENT
PRINT CYLINDER AUTO RETURN TO “ 0 ” POSITION
SHINKO INKING SYSTEM
INK FLOW MONITORING BUZZER

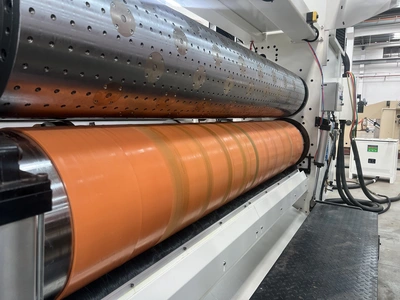

CERAMIC ANILOX ROLL, CHAMBERED DOCTOR BLADE INKING SYSTEM
VACUUM TRANSFER
THREE SERVO MOTORS CONTROL THE PRINT CYLINDER, VACUUM BOX AND ANILOX ROLL SEPARATELY

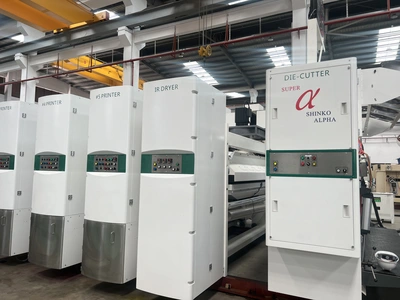

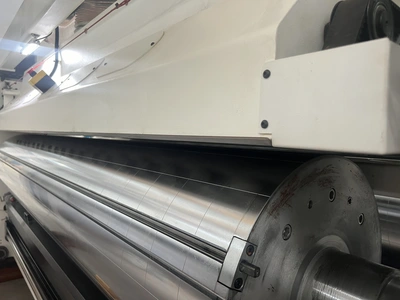

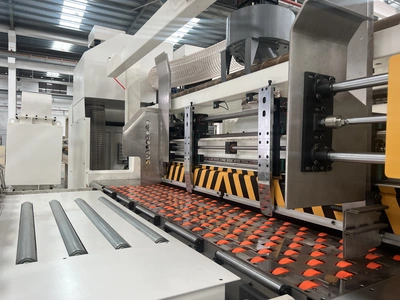

DIE-CUTTING UNIT

AUTOMATIC LATERAL ADJUSTMENTS

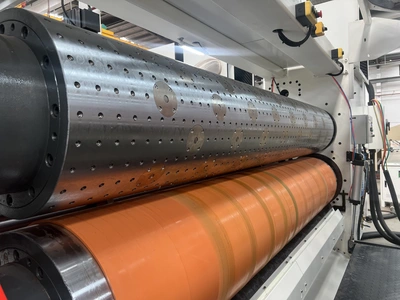

ANVIL COMPENSATION SYSTEM
ANVIL GRINDING SYSTEM
SERRAPID SYSTEM (OPTIONAL)

30” DWELL SECTION (OPTIONAL)

VACUUM TRANSFER
MOTORIZED BOARD CALIPERS WITH READOUT
ZONE CONTROLLED HEATING
JAM DETECTORS
SAFETY WIRE STOP SWITCH FOR EMERGENCY
LED TEMPERATURE READ OUT
COOLING FANS

SLOTTING SECTION
MOTORIZED AND COMPUTERIZED WET-UP OF SLOTTING HEADS AND KNIVES
DUAL SLOTTING SECTION
CREASING SECTION
MOTORIZED AND COMPUTERIZED BOARD CALIPERS

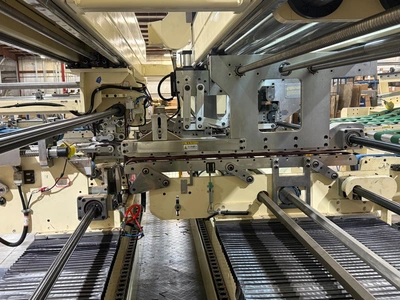

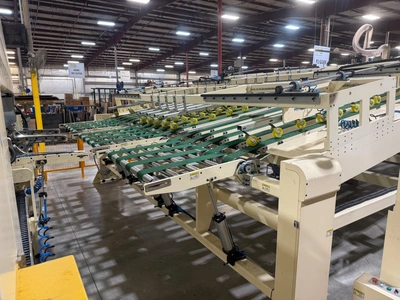

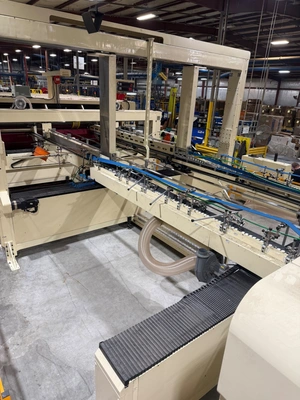

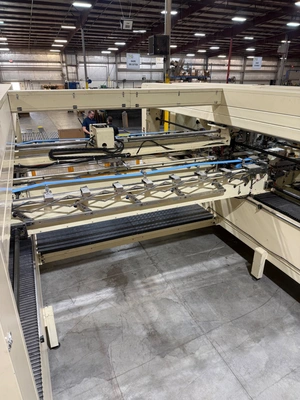

FOLDING SECTION:

SJ- UPFOLD FOLDING RAILS ( FLOOR LEVEL NO PLATFORMS REQUIRED
MOTORIZED FODING RAILS
VALCO GLUE SYSTEM
ROD/BELT COMBO FOLDING SYSTEM
VS BELTS AT FINAL FOLD
TRANSFER DECK TO STACKER BOARDLINE WITH ADJUSTABLE HOLD DOWN SYSTEM

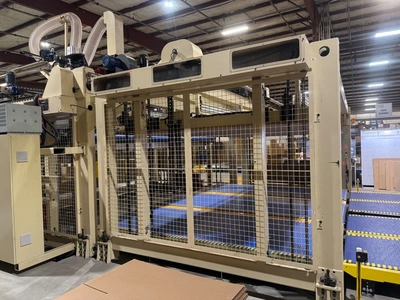

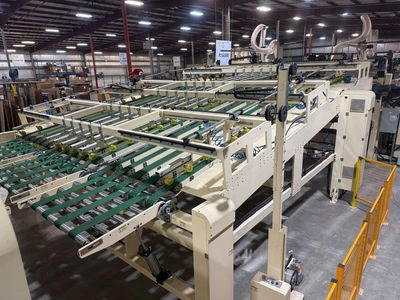

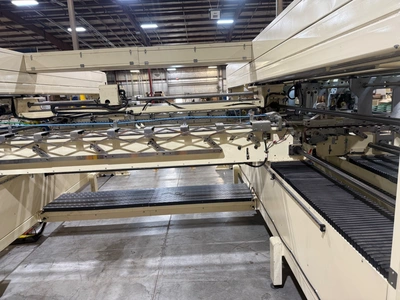

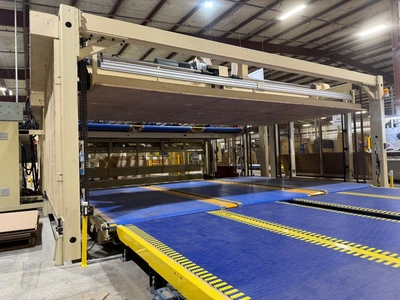

DOWNSTACKER AND COMPRESION SECTIONS

FULL WIDTH DOWN STACKER
SQUARING SECTION
AUTOMATIC ACCUMULATOR SECTION SERVO DRIVEN
AUTOMATIC DOWNSTACKER WITH BLUE BELT CONVEYOR UNDER ACCUMULATORS.
SERVO CONTROLLED SPEED OF EXIT BELT

POST COMPRESSION SECTION WITH
OVERLEAD COMPRESSION SYSTEM
BLUE BELT EXIT CONVEYOR
LIGHT CURTIAN SAFETY SYSTEM AT BACK END OF DELIVERY SECTION

142” WIDE MAXIMUM SHEET SIZE
480V 3P 60 HZ
VARNISH UNIT: (OPTIONAL)
ROLL TO ROLL VARNISH UNIT

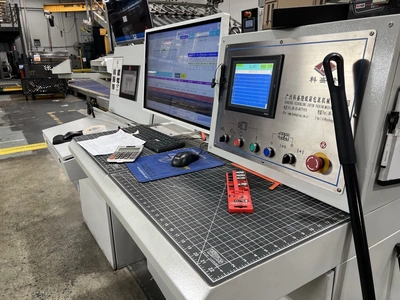

CNC:

TOUCH PANEL

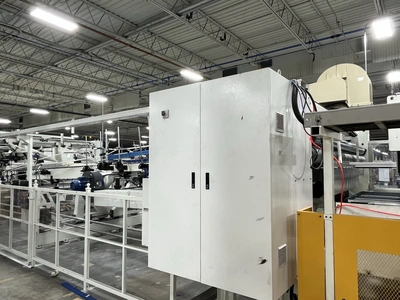

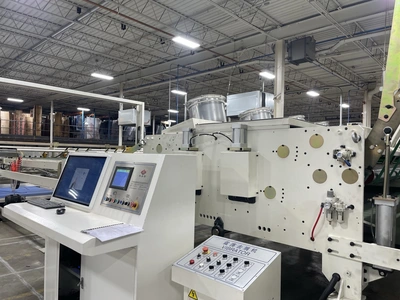

MAIN CONTROL PANEL
UNIVERSAL POWER SUPPLY
TEACHING FUNCTION
DIAGNOSTIC SYSTEM
ERP SYSTEM WITH RECIPE STORAGE AND DATA COLLECTION
