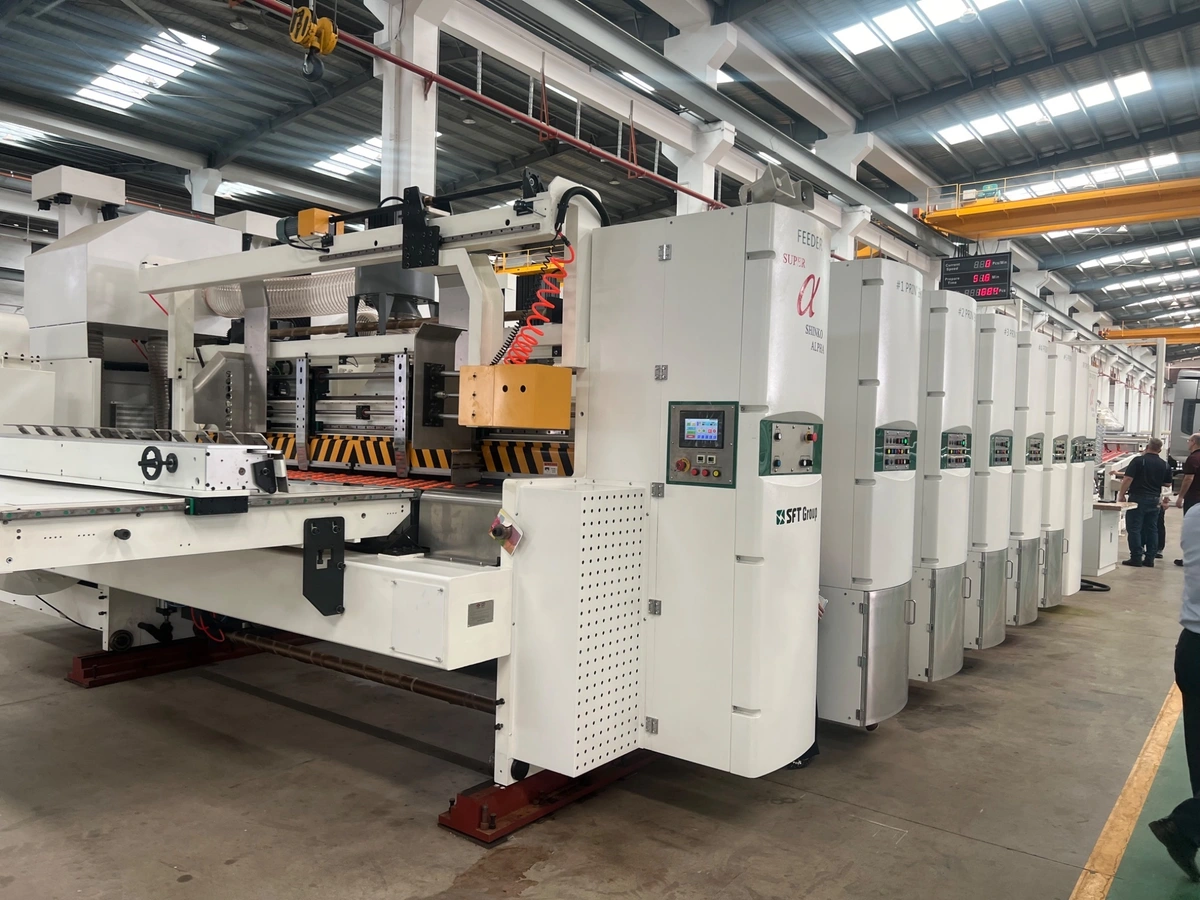

New 2026 SHINKO SUPER ALPHA VELOCITY 1628 | 66" X 110" ROTARY DIE CUTTER

Description

66" X 110" 4/COLOR SHINKO SUPER ALPHA VELOCITY 1628 ROTARY DIE CUTTER EQUIPPED WITH, SERVO DRIVEN LEAD EDGE FEEDER,
FULL VACUUM TRANSFER SECTIONS WITH CERAMIC COATED ROLLERS
VACUUM SUCTION BLOWER VARIABLE SPEED CONTROLLED BY TOUCH SCREEN
(0) TOP PRINTERS (CERAMIC ANILOX ROLLS AND DOCTOR BLADES), (4) BOTTOM PRINTER (CERAMIC ANILOX ROLL AND DOCTOR BLADE),
EACH UNIT IS INDIVIDUALLY DRIVEN BY SERVO MOTORS
CNC CONTROLLED WITH ERP SYSTEM

FEEDING UNIT:
SERVO DRIVEN LEAD EDGE FEEDER
AUTO RETURN TO “0” POSITION
BACK GUIDE AUTO SET
LEAD EDGE AUTO SET
PAPER DUST REMOVER (SHINKO’S ORIGINAL DESIGN)
SHEET JAM DETECTOR
BATCH COUNTER
SIDE TAMPER
LEAD EDGE TABLE GRATE-LESS MECHANISM
FEEDING PERFORMANCE AND RELIABILITY IS INCREASED DRAMATICALLY BY ADOPTING A LEAD EDGE FEEDER THAT IS CAPABLE OF HANDLING WARPED BOARD BY INDEPENDENTLY DRIVING EACH AXIS SHAFT (4 AXIS) BY SERVO MOTOR.
THE FEEDER IS DESIGNED TO DECREASE NOISE AND VIBRATION WHEN RUNNING AT HIGH SPEEDS, CREATING A SAFER, QUIETER ENVIRONMENT FOR OPERATORS AND PLANT PERSONNEL. AN ADDED REGISTRATION COMPENSATOR GREATLY INCREASES THE ACCURACY OF THE FEEDER.

PRINTING UNITS (0 TOP PRINTERS, 4 BOTTOM PRINTER):

THE USE OF A SINGLE REVERSE ANGLE BLADE SYSTEM COVERS INK UNIFORMLY REGARDLESS OF MACHINE SPEED OR SHEET SIZE, ELIMINATING UNEVEN OR FADED COLORS. PRINT CYLINDER MOTORIZED LATERAL ADJUSTMENT
PRINT CYLINDER AUTO RETURN TO “ 0 ” POSITION
SHINKO INKING SYSTEM
INK FLOW MONITORING BUZZER
CERAMIC ANILOX ROLL, CHAMBERED DOCTOR BLADE INKING SYSTEM

(0) OPTIONAL SLOTTING UNIT:
SHINKO SERVO DRIVEN 8-SHAFT SLOTTING SECTION OFFERS OUTSTANDING CREASING AND CLEAN SLOTTING CAPABILITY

DIE-CUTTING UNIT:
AUTOMATIC LATERAL ADJUSTMENTS
ANVIL COMPENSATION SYSTEM
ANVIL GRINDING SYSTEM

COMPUTERIZED NUMERIC CONTROLS (CNC):
TOUCH PANEL
MAIN CONTROL PANEL
UNIVERSAL POWER SUPPLY
TEACHING FUNCTION
DIAGNOSTIC SYSTEM

(Price on request): SUPERVISED INSTALLATION INCLUDES ASSEMBLY OF THE MACHINE, CONNECTION OF ELECTRICAL FROM MACHINE TO MAIN CONTROL PANEL, START-UP OF THE MACHINE, DE-BUG AND OPERATOR TRAINING. BUYER IS RESPONSIBLE FOR TRAVEL, LODGING AND PER DIEM FOR MEALS. BUYER IS ALSO RESPONSIBLE FOR UNLOADING OF CONTAINERS AND RIGGERS/ EQUIPMENT NEEDED FOR INSTALLATION.

TRANSPORTATION COST: AS INCURRED

WARRANTY: THE SELLER WARRANTS THE MACHINE WILL BE FREE OF DEFECTS IN MATERIALS AND WORKMANSHIP WHEN IT IS PROPERLY USED IN ACCORDANCE WITH THE DIRECTIONS FOR IT’S USE FOR A PERIOD OF (12) MONTHS FROM ARRIVAL AT THE CUSTOMERS PREMISES. THE REMEDY FOR BREACH OF CONTRACT SHALL BE LIMITED TO REPLACEMENT OF DEFECTIVE PARTS (MECHANICAL AND ELECTRICAL) REPAIRING AND RELATED LABOR. CONSEQUENTIAL DAMAGES FOR BREACH OF WARRANTY WHERE THE CLAIMED LOSS IS COMMERCIAL ARE EXCLUDED. THERE ARE NO EXPRESSED WARRANTIES BEYOND THOSE STATED IN WRITING. THE WARRANTY SET FORTH IS THE ONLY WARRANTY BY THE SELLER WITH RESPECT TO THE MACHINE SPECIFIED IN THE SALES AGREEMENT. NO OTHER WARRANTIES OF ANY KIND, WEATHER STATUTORY, WRITTEN, ORAL, EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE OR MERCHANTABILITY SHALL APPLY. THE WARRANTY WILL IMMEDIATELY BECOME VOID IF THERE IS A BREACH OF CONTRACT BY BUYER OR IF THE MACHINERY IS MOVED, MODIFIED OR IF ANY MAJOR REPAIR IS PERFORMED BY UNAUTHORIZED PERSONNEL WITHOUT THE SELLERS WRITTEN CONSENT

THE MACHINES DESIGN AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
