NEW KL 1636 PRINT UNIT AND DWELL SECTION

Description

TYPE: KL - K7 1636 ROTARY DIE CUTTER PRINT UNIT WITH 30" DWELL SECTION

66" X 142" (0) TOP PRINTERS, (1) BOTTOM PRINTERS, (1) 30" DWELL SECTION .

PRINTING UNITS X 1 – (0) TOP PRINTING UNITS & (1) BOTTOM PRINTING UNITS

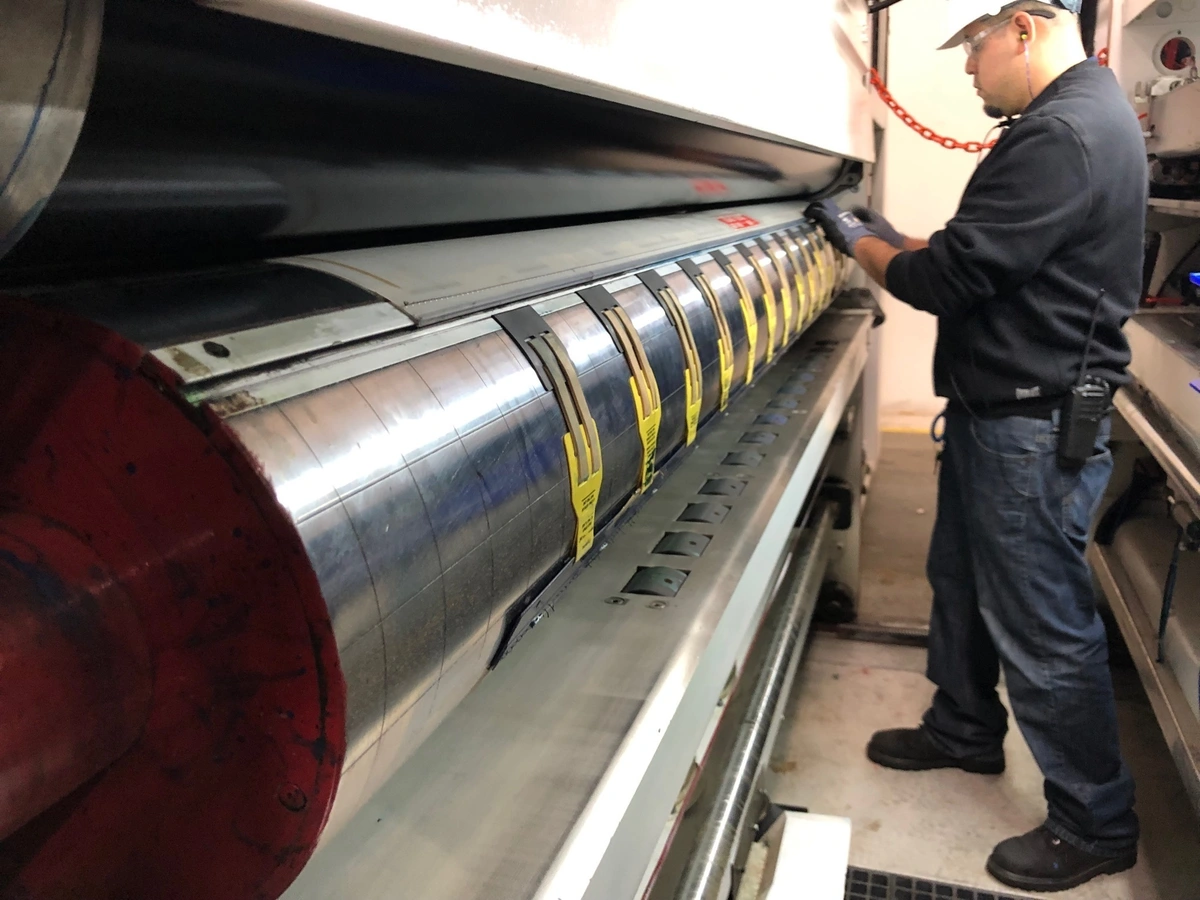

CHROME PLATED PRINT CYLINDERS W/ 2” X 2” ENGRAVED PATTERN
MATTHEWS TYPE DIE MOUNTING WITH AUXILIARY GROOVES
FOOT & PUSH BUTTON SWITCHES FOR DIE CYLINDER ROTATION
ELECTRONIC REGISTRATION SYSTEM (COMPUTERIZED/DIGITAL)
MOTORIZED BOARD CALIPERS (COMPUTERIZED) WITH DIGITAL READ OUT
MOTORIZED ANILOX TO IMPRESSION CALIPER (COMPUTERIZED/DIGITAL)
VACUUM TRANSFER SECTIONS WITH CERAMIC COATED ROLLERS
VACUUM SUCTION BLOWER VARIABLE SPEED CONTROLLED BY TOUCH SCREEN
ROLL TO BLADE SINGLE REVERSE ANGLE BLADE INKING SYSTEM
LASER ENGRAVED CERAMIC ANILOX ROLLS
INK SYSTEM WITH (1) DUAL DIAPHRAGM PUMP TO SUPPLY INK TO CHAMBER AND (1) DUAL DIAPHRAGM RETURN PUMP WITH AUTOMATIC WASH-UP SYSTEM
MOTORIZED LATERAL PRINT CYLINDER ADJUSTMENT WITH DIGITAL READ OUT
AUTOMATIC POSITION RETURN AFTER MACHINE OPENING
LOW INK SENSORS AND ALARMS (AUDIBLE & VISUAL)
OMRON TOUCH SCREEN OPERATOR INTERFACE
COMPUTERIZED MEMORY OF JOB SETTINGS

(1) OPTIONAL DWELL / DRYER SECTION

VACUUM TRANSFER
IR DRYER LAMPS
MOTORIZED BOARD CALIPERS WITH READOUT
ZONE CONTROLLED HEATING
JAM DETECTORS
SAFETY WIRE STOP SWITCH FOR EMERGENCY
LED TEMPERATURE READ OUT
COOLING FANS

INSTALLATION (Price on request): SUPERVISED INSTALLATION INCLUDES ASSEMBLY OF THE MACHINE, CONNECTION OF ELECTRICAL FROM MACHINE TO MAIN CONTROL PANEL, START-UP OF THE MACHINE, DE-BUG AND OPERATOR TRAINING. BUYER IS RESPONSIBLE FOR TRAVEL, LODGING AND PER DIEM FOR MEALS. BUYER IS ALSO RESPONSIBLE FOR UNLOADING OF CONTAINERS AND RIGGERS/ EQUIPMENT NEEDED FOR INSTALLATION.

TRANSPORTATION COST: AS INCURRED

WARRANTY: THE SELLER WARRANTS THE MACHINE WILL BE FREE OF DEFECTS IN MATERIALS AND WORKMANSHIP WHEN IT IS PROPERLY USED IN ACCORDANCE WITH THE DIRECTIONS FOR IT’S USE FOR A PERIOD OF (12) MONTHS FROM ARRIVAL AT THE CUSTOMERS PREMISES. THE REMEDY FOR BREACH OF CONTRACT SHALL BE LIMITED TO REPLACEMENT OF DEFECTIVE PARTS (MECHANICAL AND ELECTRICAL) REPAIRING AND RELATED LABOR. CONSEQUENTIAL DAMAGES FOR BREACH OF WARRANTY WHERE THE CLAIMED LOSS IS COMMERCIAL ARE EXCLUDED. THERE ARE NO EXPRESSED WARRANTIES BEYOND THOSE STATED IN WRITING. THE WARRANTY SET FORTH IS THE ONLY WARRANTY BY THE SELLER WITH RESPECT TO THE MACHINE SPECIFIED IN THE SALES AGREEMENT. NO OTHER WARRANTIES OF ANY KIND, WEATHER STATUTORY, WRITTEN, ORAL, EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE OR MERCHANTABILITY SHALL APPLY. THE WARRANTY WILL IMMEDIATELY BECOME VOID IF THERE IS A BREACH OF CONTRACT BY BUYER OR IF THE MACHINERY IS MOVED, MODIFIED OR IF ANY MAJOR REPAIR IS PERFORMED BY UNAUTHORIZED PERSONNEL WITHOUT THE SELLERS WRITTEN CONSENT

THE MACHINES DESIGN AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
