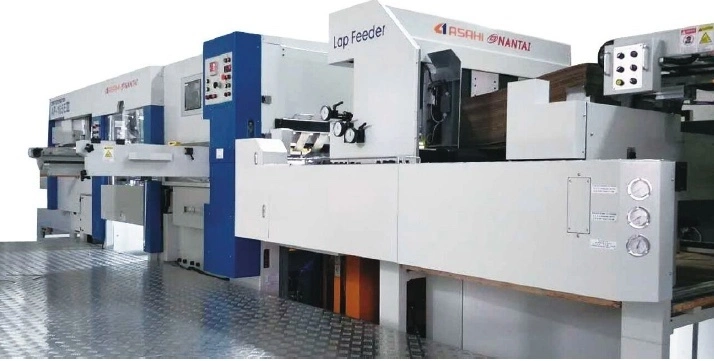

1650 ASAHI AUTOPLATEN DIE CUTTER

Description

ASAHI AUTOPLATEN DIE CUTTER EQUIPPED WITH NON-STOP SERVO FEEDER, COMPUTERIZED SET-UP, ORDER CHANGE SET-UP CAN BE DONE UNDER 1 MINUTE, TORQUE LIMITING DEVICE IN DIE CUT SECTION FOR SAFETY, CAPABLE OF DIE CUTTING FROM MICROFLUTE TO DOUBLE WALL, TWO STEP SHEET REGISTRATION SYSTEM (FIRST STEP CARRIED OUT BY SERVO CONTROL VACUUM FEEDER AND THE SECOND STEP IS BY BAFFLE POSITIONING DEVICE), CAPABLE OF 100% STRIPPING (INTERNAL, THREE SIDES AND GRIPPER EDGE REMOVAL DEVICE).

FEED SECTION:
MOTORIZED SIDE LAY TAMPERING DEVICES FOR BOTH LENGTH AND WIDTH.
WARP BOARD LEVELING DEVICE

DIE CUT SECTION:
AIR LOCKING DEVICE FOR CUTTING DIE
SIDE DIE LOADING
MOTORIZED DIE CUT PRESSURE ADJUSTMENT AND MICRO ADJUSTMENT
DIE CUT PRESSURE DISPLAY DEVICE ADOPTS LOAD SENSING INDICATOR

STRIPPING SECTION:
MOTORIZED STRIPPING DIES
CENTER LINE SYSTEM
LEAD EDGE TRIM REMOVAL SYSTEM WITH RIGHT ANGLE SCRAP DISCHARGE

DELIVERY SECTION:
BATCH DELIVERY SECTION WITH MOTORIZED SETUP
HIGH-VELOCITY SCRAP BLOWERS WITH LEFT AND RIGHT SIDE TAMPERS
FRONT AND BACK TAMPERS
SERVO CONTROL BATCH ACCUMULATOR
SERVO DRIVEN BATCH DELIVERY CONVEYOR

INSTALLATION (Price on request): SUPERVISED INSTALLATION INCLUDES ASSEMBLY OF THE MACHINE, CONNECTION OF ELECTRICAL FROM MACHINE TO MAIN CONTROL PANEL, START-UP OF THE MACHINE, DE-BUG AND OPERATOR TRAINING. BUYER IS RESPONSIBLE FOR TRAVEL, LODGING AND PER DIEM FOR MEALS. BUYER IS ALSO RESPONSIBLE FOR UNLOADING OF CONTAINERS AND RIGGERS/ EQUIPMENT NEEDED FOR INSTALLATION.

TRANSPORTATION COST: AS INCURRED

WARRANTY: THE SELLER WARRANTS THE MACHINE WILL BE FREE OF DEFECTS IN MATERIALS AND WORKMANSHIP WHEN IT IS PROPERLY USED IN ACCORDANCE WITH THE DIRECTIONS FOR IT’S USE FOR A PERIOD OF (12) MONTHS FROM ARRIVAL AT THE CUSTOMERS PREMISES. THE REMEDY FOR BREACH OF CONTRACT SHALL BE LIMITED TO REPLACEMENT OF DEFECTIVE PARTS (MECHANICAL AND ELECTRICAL) REPAIRING AND RELATED LABOR. CONSEQUENTIAL DAMAGES FOR BREACH OF WARRANTY WHERE THE CLAIMED LOSS IS COMMERCIAL ARE EXCLUDED. THERE ARE NO EXPRESSED WARRANTIES BEYOND THOSE STATED IN WRITING. THE WARRANTY SET FORTH IS THE ONLY WARRANTY BY THE SELLER WITH RESPECT TO THE MACHINE SPECIFIED IN THE SALES AGREEMENT. NO OTHER WARRANTIES OF ANY KIND, WEATHER STATUTORY, WRITTEN, ORAL, EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE OR MERCHANTABILITY SHALL APPLY. THE WARRANTY WILL IMMEDIATELY BECOME VOID IF THERE IS A BREACH OF CONTRACT BY BUYER OR IF THE MACHINERY IS MOVED, MODIFIED OR IF ANY MAJOR REPAIR IS PERFORMED BY UNAUTHORIZED PERSONNEL WITHOUT THE SELLERS WRITTEN CONSENT

THE MACHINES DESIGN AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
