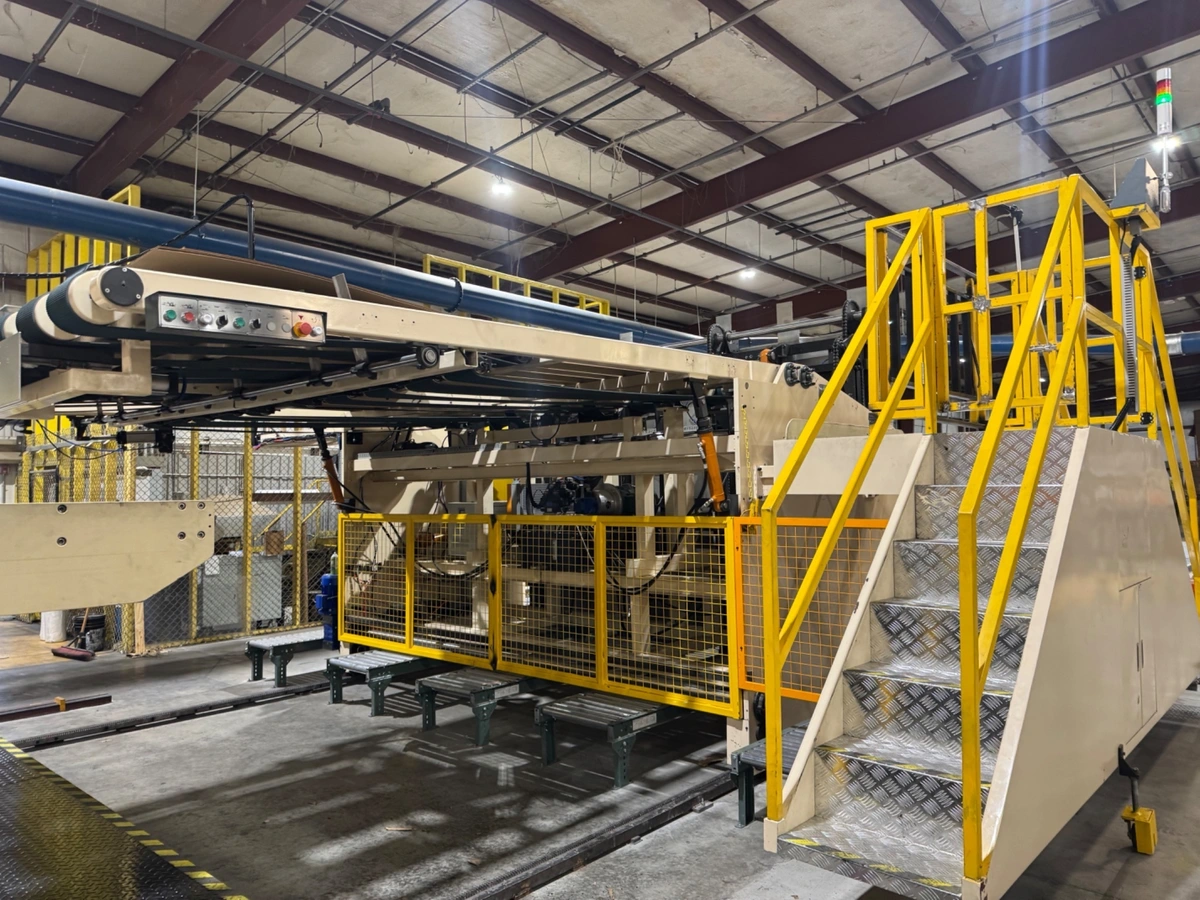

SL-2253 Semi Auto Prefeeder

Description

S-JUER SL-2253 Semi Auto Prefeeder, 2024 model. ideal for streamlining print production. Advanced features for efficient operation.

Max. stacking weight 2000 KG
Max. Feeding Sheet Size 2200mm×5300mm
Min. Feeding Sheet Size. 400mm×2400mm
Max. Speed. 60~80 sheets/min
Type of lifting. Chain fork, hydraulic drive
Fork turnover power. Hydraulic drive
Horizontal Conveyor lifting power Hydraulic drive

A Side baffle on the drive side, the stretch can be adjusted motorized.
Equipped with auto lengthways patting device at front end of horizontal conveyor belt.
The whole machine can move lengthways.
Fork feet are connected type, push sheet forwarder after fork turnover.
Horizontal conveyor belt can be controlled by flexo sensor.
Chain pull sheets lifting controlled with proximity switch.
The in-feed roller conveyor are fixed on floor.
