Technical Specification
Max. Stacking Height: 1800mm
Max. Stacking Size: 1500 X 1500mm
Total Power: 6kw

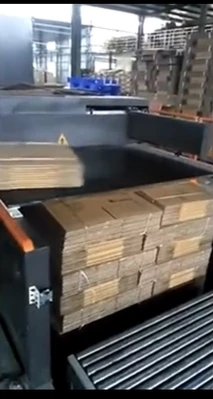

Mechanism lifting automatic layer stacking
Automatic pallet feeding
After stacking up to a certain height, the whole stack automatically rises and outputs neatly.
The lifting output roller table is connected with the ground fixed roller table, and the whole stacked carton is exported along the ground roller to be pulled by a paper truck or carried away in other ways.
Main mechanism: Tray storage mechanism; Tray conveying mechanism; Stack lifting mechanism; Carton stacking mechanism; Stack output logistics; Electrical control mechanism.
Stacking output roller
Size: About 5820×1600mm
Voltage:About 3kw
The whole stacked carton is output smoothly from the loadformer
