NEW SHINKO 66" X 110" " 'SUPER ALPA OPEN/CLOSE 1628' FLEXO FOLDER GLUER

Description

66" X 110" 4/COLOR 'SHINKO SUPER ALPHA OPEN/CLOSE' FLEXO FOLDER GLUER EQUIPPED WITH, SERVO DRIVEN LEAD EDGE FEEDER,
VACUUM SHEET TRANSFER WITH EDGE CALIPERS
(4) TOP PRINTERS (CERAMIC LASER ENGRAVED WITH CHAMBER DR. BLADES)
8 SHAFT DUAL SLOTTER, CREASING SECTION, ROTARY DIE CUTTING SECTION , AND SHINKO IN-LINE FOLDER GLUER COUNTER EJECTOR .
EACH UNIT IS INDIVIDUALLY DRIVEN BY SERVO MOTORS
CNC CONTROLLED WITH ERP SYSTEM

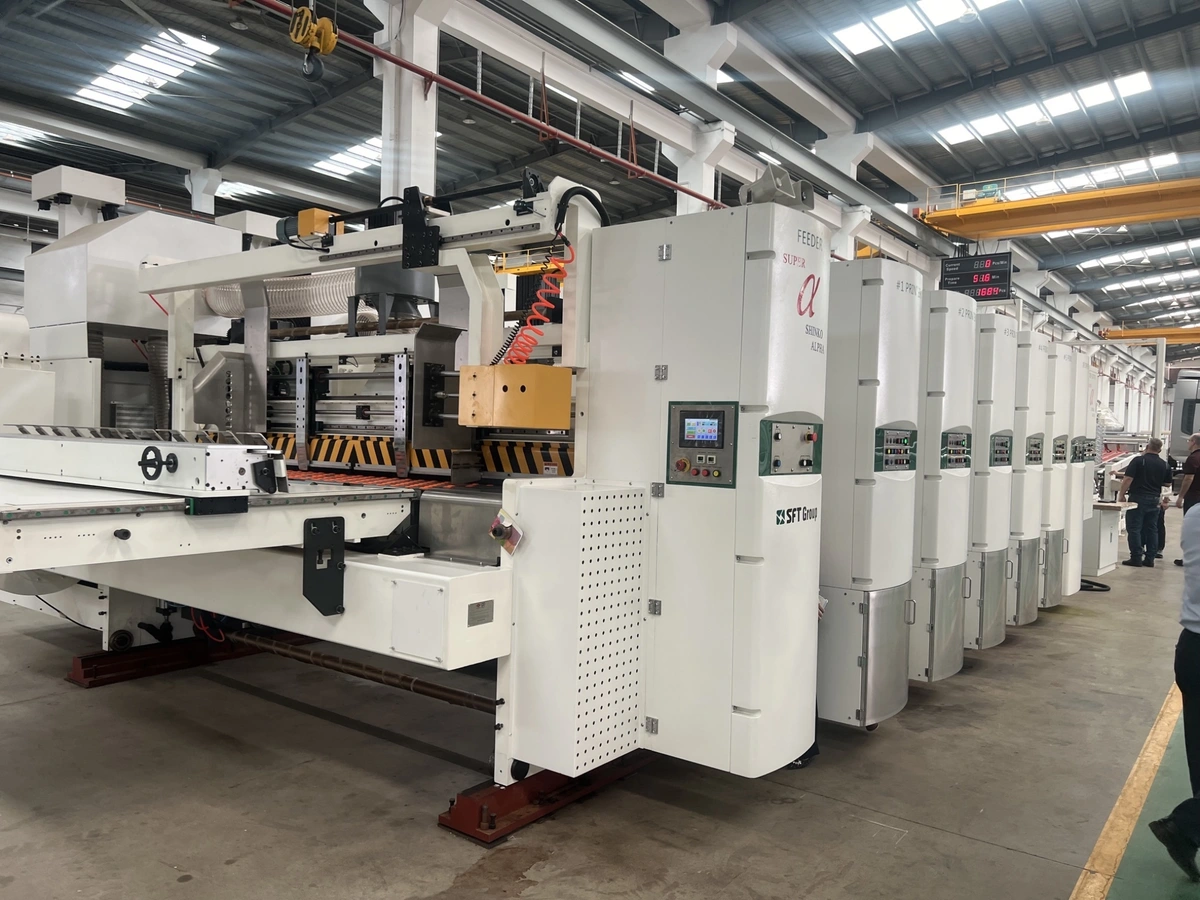

FEEDING UNIT

FOUR AXIS SERVO DRIVEN LEAD EDGE FEEDER
AUTO RETURN TO “0” POSITION
BACK GUIDE AUTO SET
LEAD EDGE AUTO SET
PAPER DUST REMOVER (SHINKO’S ORIGINAL DESIGN)
SHEET JAM DETECTOR
BATCH COUNTER
SIDE TAMPER
GRATE-LESS TABLE MECHANISM

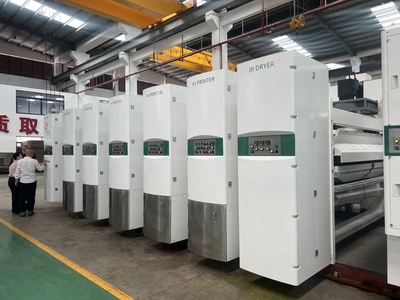

PRINTING UNITS (4 BOTTOM PRINTERS)

PRINT CYLINDER MOTORIZED LATERAL ADJUSTMENT
PRINT CYLINDER AUTO RETURN TO “ 0 ” POSITION
MOTORIZED LATER ADJUSTMENT OF PRINT CYLINDER
AVAILABLE WITH CAM LOCK OR MATHEWS TYPE DIE MOUNTING
CERAMIC LASER ENGRAVED ANILOX ROLLS
CHAMBER DR. BLADES
SHINKO ONE TOUCH AUTOMATIC WASH-UP SYSTEM
DIGITAL REGISTRATION SYSTEM
INK FLOW MONITORING BUZZER WITH WARNING LIGHT & AUDIBLE BUZZER

CREASING UNIT
SERVO DRIVEN CREASING UNIT
EQUIPPED WITH PRE CREASING WHEEL AND CREASING WHEELS

SLOTTING UNIT
SHINKO SERVO-DRIVEN 8-SHAFT SLOTTING SECTION

DIE-CUTTING UNIT

SERVO DRIVEN DIE CUT SECTION
AUTOMATIC LATERAL ADJUSTMENTS
ANVIL COMPENSATION SYSTEM
ANVIL GRINDING SYSTEM

FOLDING SECTION

SHINKO’S PATENTED FORMING ROLLER SYSTEM MINIMIZES JOINT GAPS AND FISHTAILING. THIS COMBINED WITH SHINKO’S ACCURATE CREASING AND SLOTTING SYSTEM, PRODUCES THE HIGHEST QUALITY FOLDING AND FORMING

MOTORIZED FOLDING RAILS
HIGH VELOCITY BLOWER FANS
QUICK LOCK ADJUSTABLE FOLDING RODS
VARIABLE SPEED LOWER VACUUM BELT
MOTORIZED GAP ADJUSTMENT IN FOLDING RAIL
FORMING ROLLERS
UPPER VACUUM BELT SYSTEM
VARIABLE SPEED LOWER VACUUM BELT WITH MOTORIZED ADJUSTMENT
SELECT DEVICE TO CHANGE CLEARANCE BASED ON FLUTES.
VALCO GLUE SYSTEM

COUNTER EJECTOR

SHINKO’S SERVO DRIVEN DOWN STACKING COUNTER SYSTEM CAN EASILY HANDLE FINISHED BOXES, EVEN AT THE HIGHEST SPEEDS.

TOP LOADING DOWN STACKING SERVO COUNTER EJECTOR
SERVO DRIVEN EJECTOR BELTS
HEAVY-DUTY SQUARING/ACCUMULATION SECTION
HOLD DOWN FAN
HEAVY DUTY ELEVATOR
TOUCH SCREEN OPERATED HMI

COMPUTERIZED NUMERIC CONTROLS (CNC)

SHINKO HAS DEVELOPED DEDICATED SOFTWARE FOR THE FLEXO FOLDER GLUER THAT IS EASY TO USE WHILE STILL GIVING THE OPERATOR FLEXIBLE CONTROL.

INSTALLATION (Price on request): SUPERVISED INSTALLATION INCLUDES ASSEMBLY OF THE MACHINE, CONNECTION OF ELECTRICAL FROM MACHINE TO MAIN CONTROL PANEL, START-UP OF THE MACHINE, DE-BUG AND OPERATOR TRAINING. BUYER IS RESPONSIBLE FOR TRAVEL, LODGING AND PER DIEM FOR MEALS. BUYER IS ALSO RESPONSIBLE FOR UNLOADING OF CONTAINERS AND RIGGERS/ EQUIPMENT NEEDED FOR INSTALLATION.

TRANSPORTATION COST: AS INCURRED

WARRANTY: THE SELLER WARRANTS THE MACHINE WILL BE FREE OF DEFECTS IN MATERIALS AND WORKMANSHIP WHEN IT IS PROPERLY USED IN ACCORDANCE WITH THE DIRECTIONS FOR IT’S USE FOR A PERIOD OF (12) MONTHS FROM ARRIVAL AT THE CUSTOMERS PREMISES. THE REMEDY FOR BREACH OF CONTRACT SHALL BE LIMITED TO REPLACEMENT OF DEFECTIVE PARTS (MECHANICAL AND ELECTRICAL) REPAIRING AND RELATED LABOR. CONSEQUENTIAL DAMAGES FOR BREACH OF WARRANTY WHERE THE CLAIMED LOSS IS COMMERCIAL ARE EXCLUDED. THERE ARE NO EXPRESSED WARRANTIES BEYOND THOSE STATED IN WRITING. THE WARRANTY SET FORTH IS THE ONLY WARRANTY BY THE SELLER WITH RESPECT TO THE MACHINE SPECIFIED IN THE SALES AGREEMENT. NO OTHER WARRANTIES OF ANY KIND, WEATHER STATUTORY, WRITTEN, ORAL, EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE OR MERCHANTABILITY SHALL APPLY. THE WARRANTY WILL IMMEDIATELY BECOME VOID IF THERE IS A BREACH OF CONTRACT BY BUYER OR IF THE MACHINERY IS MOVED, MODIFIED OR IF ANY MAJOR REPAIR IS PERFORMED BY UNAUTHORIZED PERSONNEL WITHOUT THE SELLERS WRITTEN CONSENT

THE MACHINES DESIGN AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
