NEW KL KLS 924 FLEXO FOLDER GLUER RDC SECTION

Description

TYPE: KL - KLS-924 FLEXO FOLDER GLUER DIE CUT SECTION

35" x 94" RDC SECTION

GENERAL MACHINE FEATURES

OMRON PLC SYSTEM & TOUCH SCREENS
FULLY COMPUTERIZED WITH ORDER RECALL
GEARS HARDENED TO >60 HRC
HEAVY DUTY CAST SIDE FRAMES
HEAVY DUTY BUSHINGS INSIDE FRAMES
AUTOMATIC OIL LUBRICATION SYSTEM
AUTOMATIC ZERO SYSTEMS
CNC CONTROLLED BOARD CALIPERS
CNC CONTROLLED WITH TOUCH SCREEN OPERATOR INTERFACES
CAST IRON TRACKS WITH HARDENED WEAR STRIPS
CHROME PLATED POLISHED AND GROUND SHAFTS AND CYLINDERS
AIR-CONDITIONED CABINETS
SAFETY FEATURES TO INCLUDE, WARNING ALARMS, INTERLOCKS, LIGHT TOWERS, AND E-STOPS
MOTORIZED FRAME OPENINGS
ELECTRIC RUNNING REGISTERS WITH DIGITAL READ-OUT AND TOUCH SCREEN CONTROL (INCLUDED IN COMPUTERIZED SET-UP)

DIE CUTTING SECTION (TANDAM OPPOSING DIE CUT SECTIONS AVAILABLE OPTIONALLY)

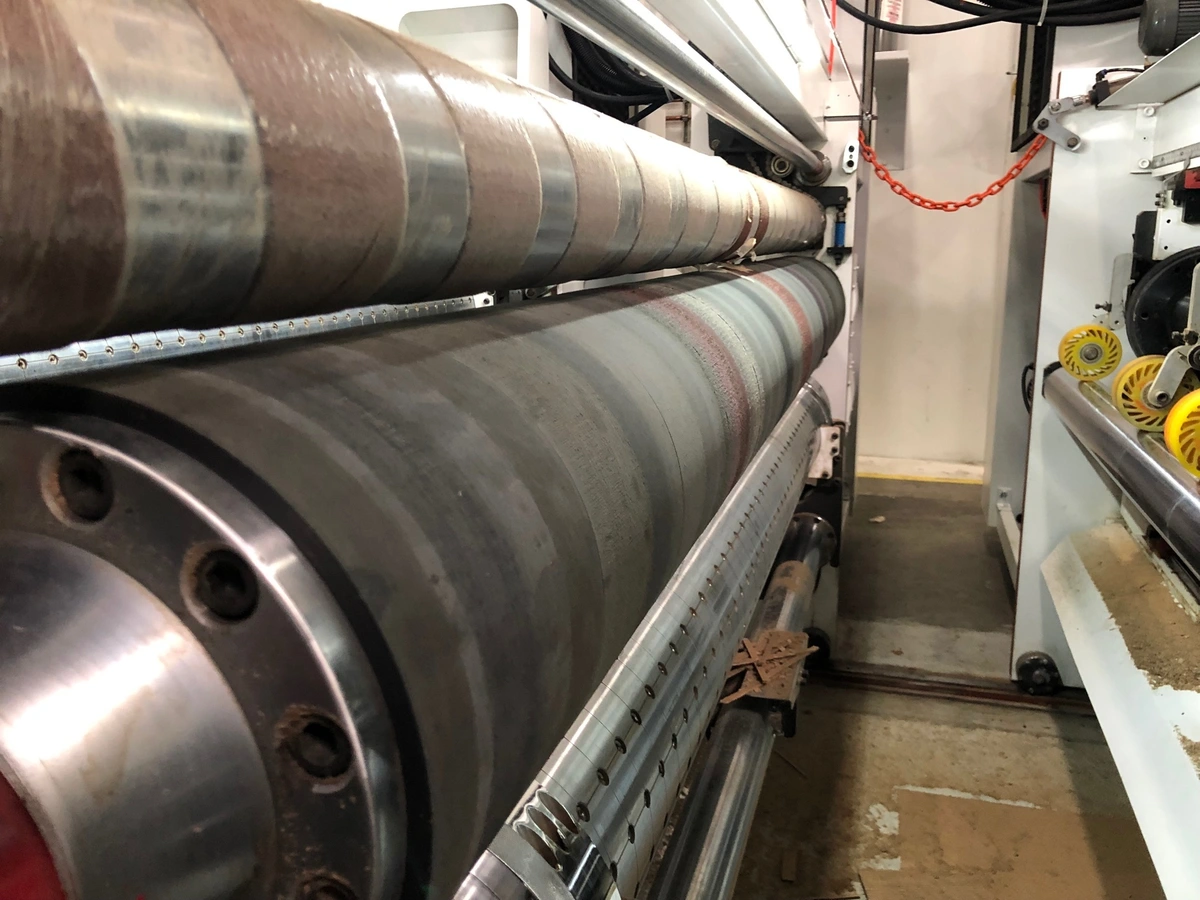

CHROME PLATED DIE MOUNTING CYLINDER
2” X 2” BOLT HOLE PATTERN
REMOVABLE THREADED INSERTS
ANVIL OSCILLATION SYSTEM
ANVIL COMPENSATION SYSTEM WITH VARIABLE SPEED
ANVIL TRIMMING SYSTEM
ELECTRONIC REGISTRATION SYSTEM (COMPUTERIZED WITH DIGITAL READ OUT)
MOTORIZED PULL ROLL ADJUSTMENT (COMPUTERIZED WITH DIGITAL READ-OUT)
MACHINE DIRECTION SCRAP CONVEYOR UNDER DIE CUTTER
OMRON TOUCH SCREEN OPERATOR INTERFACE
HEAVY DUTY CYLINDERS
SCRAP BRUSH AND SHEET METAL DEFLECTOR
PUSH-BUTTON MAIN AUXILIARY MACHINE CONTROL

INSTALLATION (Price on request): SUPERVISED INSTALLATION INCLUDES ASSEMBLY OF THE MACHINE, CONNECTION OF ELECTRICAL FROM MACHINE TO MAIN CONTROL PANEL, START-UP OF THE MACHINE, DE-BUG AND OPERATOR TRAINING. BUYER IS RESPONSIBLE FOR TRAVEL, LODGING AND PER DIEM FOR MEALS. BUYER IS ALSO RESPONSIBLE FOR UNLOADING OF CONTAINERS AND RIGGERS/ EQUIPMENT NEEDED FOR INSTALLATION.

TRANSPORTATION COST: AS INCURRED

WARRANTY: THE SELLER WARRANTS THE MACHINE WILL BE FREE OF DEFECTS IN MATERIALS AND WORKMANSHIP WHEN IT IS PROPERLY USED IN ACCORDANCE WITH THE DIRECTIONS FOR IT’S USE FOR A PERIOD OF (12) MONTHS FROM ARRIVAL AT THE CUSTOMERS PREMISES. THE REMEDY FOR BREACH OF CONTRACT SHALL BE LIMITED TO REPLACEMENT OF DEFECTIVE PARTS (MECHANICAL AND ELECTRICAL) REPAIRING AND RELATED LABOR. CONSEQUENTIAL DAMAGES FOR BREACH OF WARRANTY WHERE THE CLAIMED LOSS IS COMMERCIAL ARE EXCLUDED. THERE ARE NO EXPRESSED WARRANTIES BEYOND THOSE STATED IN WRITING. THE WARRANTY SET FORTH IS THE ONLY WARRANTY BY THE SELLER WITH RESPECT TO THE MACHINE SPECIFIED IN THE SALES AGREEMENT. NO OTHER WARRANTIES OF ANY KIND, WEATHER STATUTORY, WRITTEN, ORAL, EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE OR MERCHANTABILITY SHALL APPLY. THE WARRANTY WILL IMMEDIATELY BECOME VOID IF THERE IS A BREACH OF CONTRACT BY BUYER OR IF THE MACHINERY IS MOVED, MODIFIED OR IF ANY MAJOR REPAIR IS PERFORMED BY UNAUTHORIZED PERSONNEL WITHOUT THE SELLERS WRITTEN CONSENT

THE MACHINES DESIGN AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
