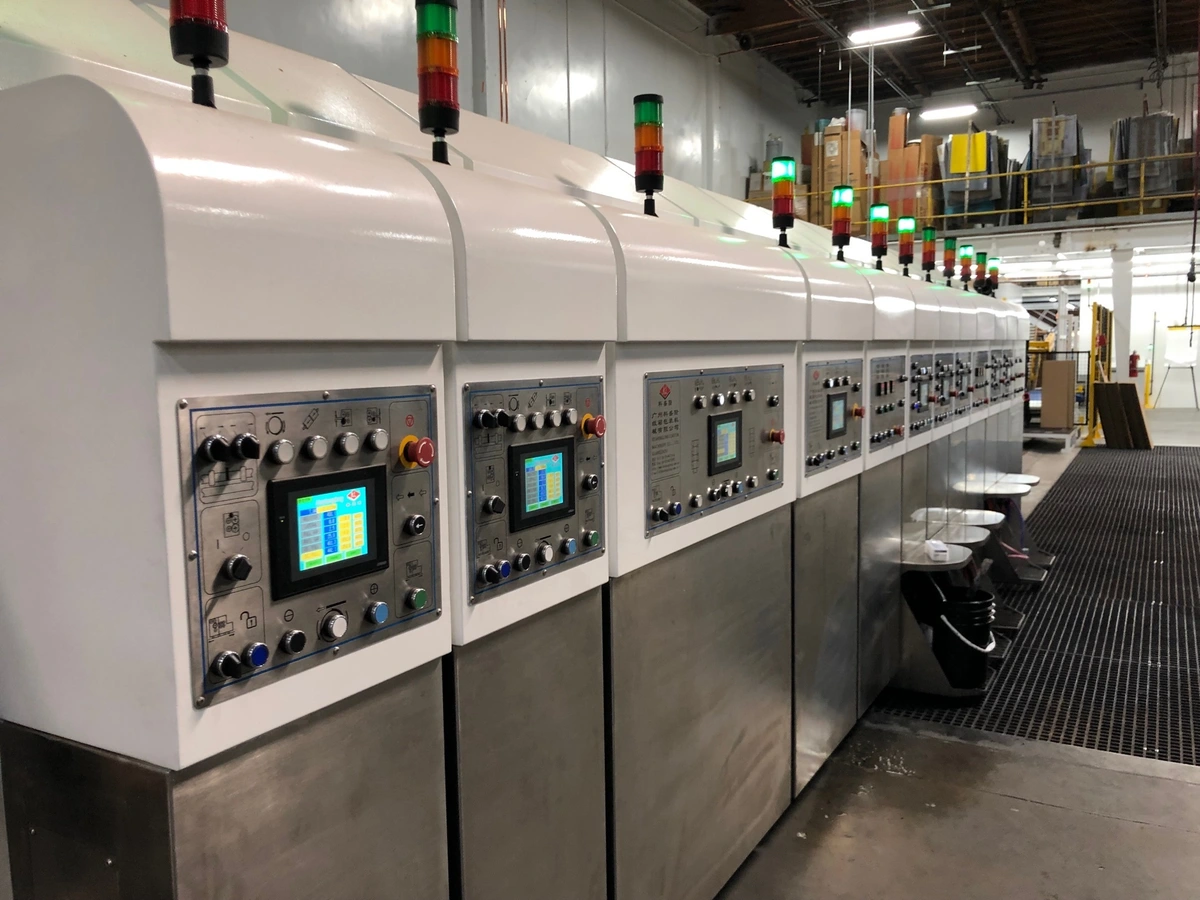

NEW KL-K7 ROTARY DIE CUTTER

Description

KL K7 1636 ROTARY DIE CUTTER

66" X 142" 2/C ROTARY DIE CUTTER

GENERAL MACHINE FEATURES

OMRON PLC SYSTEM & TOUCH SCREENS
FULLY COMPUTERIZED WITH ORDER RECALL
GEARS HARDENED TO >60 HRC
HEAVY DUTY CAST IRON SIDE FRAMES
HEAVY DUTY BUSHINGS INSIDE FRAMES
AUTOMATIC OIL LUBRICATION SYSTEM
AUTOMATIC ZERO SYSTEMS
CNC CONTROLLED BOARD CALIPERS
CNC CONTROLLED WITH TOUCH SCREEN OPERATOR INTERFACES
CAST IRON TRACKS WITH HARDENED WEAR STRIPS
CHROME PLATED POLISHED AND GROUND SHAFTS AND CYLINDERS
AIR-CONDITIONED CABINETS
SAFETY FEATURES TO INCLUDE, WARNING ALARMS, INTERLOCKS, LIGHT TOWERS, AND E-STOPS
MOTORIZED FRAME OPENINGS
ELECTRIC RUNNING REGISTERS WITH DIGITAL READ-OUT AND TOUCH SCREEN CONTROL (INCLUDED IN COMPUTERIZED SET-UP)

FEED SECTION

LEAD EDGE FEEDER WITH 4 SHAFTS WITH SEALED BEARINGS
MOTORIZED BACK-STOP (COMPUTERIZED)
PNEUMATIC SIDE TAMPER (LEFT SIDE)
MOTORIZED LATERAL POSITIONING OF SIDE GUIDES (COMPUTERIZED)
MOTORIZED LATERAL POSITIONING OF FEED GATES (COMPUTERIZED)
MICRO ADJUSTMENT OF FEED GATE CALIPER
DUAL DUROMETER UPPER FEED ROLL
MOTORIZED BOARD CALIPER (COMPUTERIZED)
VARIABLE SPEED VACUUM MOTOR
ADJUSTABLE VACUUM DAMPERS
OMRON TOUCH SCREEN OPERATOR INTERFACE FOR MAIN MACHINE
PNEUMATIC FRAME LOCK-UP
MOTORIZED FRAME-OPENING WITH WALK ALONG FEATURE

PRINTING UNITS – (2) BOTTOM PRINTING UNITS (0) TOP PRINTING UNITS

CHROME PLATED PRINT CYLINDERS W/ 2” X 2” ENGRAVED PATTERN
MATTHEWS TYPE DIE MOUNTING WITH AUXILIARY GROOVES
FOOT & PUSH BUTTON SWITCHES FOR DIE CYLINDER ROTATION
ELECTRONIC REGISTRATION SYSTEM (COMPUTERIZED/DIGITAL)
MOTORIZED BOARD CALIPERS (COMPUTERIZED) WITH DIGITAL READ OUT
MOTORIZED ANILOX TO IMPRESSION CALIPER (COMPUTERIZED/DIGITAL)
VACUUM TRANSFER SECTIONS WITH CERAMIC COATED ROLLERS
VACUUM SUCTION BLOWER VARIABLE SPEED CONTROLLED BY TOUCH SCREEN
ROLL TO BLADE SINGLE REVERSE ANGLE BLADE INKING SYSTEM
LASER ENGRAVED CERAMIC ANILOX ROLLS
INK SYSTEM WITH (1) DUAL DIAPHRAGM PUMP TO SUPPLY INK TO CHAMBER AND (1) DUAL DIAPHRAGM RETURN PUMP WITH AUTOMATIC WASH-UP SYSTEM
MOTORIZED LATERAL PRINT CYLINDER ADJUSTMENT WITH DIGITAL READ OUT
AUTOMATIC POSITION RETURN AFTER MACHINE OPENING
LOW INK SENSORS AND ALARMS (AUDIBLE & VISUAL)
OMRON TOUCH SCREEN OPERATOR INTERFACE
COMPUTERIZED MEMORY OF JOB SETTINGS

SLOTTING SECTION ( OPTIONAL)

COMPUTERIZED & MOTORIZED LATERAL POSITIONING OF SLOTTING HEADS
COMPUTERIZED & MOTORIZED POSITIONING OF SLOTTING KNIVES
COMPUTERIZED & ELECTRIC RUNNING REGISTERS WITH DIGITAL READ-OUTS
COMPUTERIZED & MOTORIZED BOARD CALIPERS WITH DIGITAL READ-OUTS
CHROME PLATED SHAFTS AND CYLINDERS
STEEL TO POLYURETHANE SCORING SYSTEM
SCRAP DEFLECTOR UNDER SLOTTING SECTION WHEN DIE CUT SECTION IS INCLUDED

DIE CUTTING SECTION

CHROME PLATED DIE MOUNTING CYLINDER
2” X 2” BOLT HOLE PATTERN
REMOVABLE THREADED INSERTS
ANVIL OSCILLATION SYSTEM
ANVIL COMPENSATION SYSTEM WITH VARIABLE SPEED
ANVIL TRIMMING SYSTEM
ELECTRONIC REGISTRATION SYSTEM (COMPUTERIZED WITH DIGITAL READ OUT)
MOTORIZED PULL ROLL ADJUSTMENT (COMPUTERIZED WITH DIGITAL READ-OUT)
MACHINE DIRECTION SCRAP CONVEYOR UNDER DIE CUTTER
OMRON TOUCH SCREEN OPERATOR INTERFACE
HEAVY DUTY CYLINDERS
SCRAP BRUSH AND SHEET METAL DEFLECTOR
PUSH-BUTTON MAIN AUXILIARY MACHINE CONTROL

(1) 30” DWELL SECTIONS (OPTIONAL)

VACUUM TRANSFER & IR DRYER LAMPS
MOTORIZED BOARD CALIPERS WITH READOUT
ZONE CONTROLLED HEATING
JAM DETECTORS
SAFETY WIRE STOP SWITCH FOR EMERGENCY
LED TEMPERATURE READ OUT
COOLING FANS

(1) KL ROTARY DIE CUT STACKER (OPTIONAL)

142” WIDE MAXIMUM SHEET SIZE
VIBRATING BLOWER BEATER SECTION WITH ADJUSTABLE BELTS
FULL PLATE BACK STOP WITH ACCUMULATORS AND BREATHER HOLES
(2) OUT CAPABILITIES
BATCH COUNTING FROM 10-50 SHEETS

MAIN COMPUTER CONTROL CONSOLE
OMRON TOUCH SCREEN OPERATOR INTERFACE
CONTROLS ALL SECTION REGISTERS
CONTROLS ALL CALIPER ADJUSTMENT
FAULT DETECTION SYSTEM WITH EVENT MEMORY ORDER
STORAGE FOR UP TO 999,999 ORDERS
MAIN MACHINE SPEED CONTROL

INSTALLATION (Price on request): SUPERVISED INSTALLATION INCLUDES ASSEMBLY OF THE MACHINE, CONNECTION OF ELECTRICAL FROM MACHINE TO MAIN CONTROL PANEL, START-UP OF THE MACHINE, DE-BUG AND OPERATOR TRAINING. BUYER IS RESPONSIBLE FOR TRAVEL, LODGING AND PER DIEM FOR MEALS. BUYER IS ALSO RESPONSIBLE FOR UNLOADING OF CONTAINERS AND RIGGERS/ EQUIPMENT NEEDED FOR INSTALLATION.

TRANSPORTATION COST: AS INCURRED

THE MACHINES DESIGN AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
